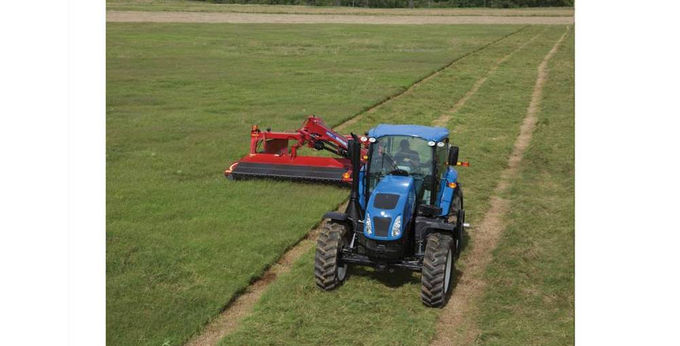

2025 New Holland Agriculture TS6.120

Description TS6 Series II tractors are the new face of standard tractors, yet these tractors are anything but basic. They’re big on power and efficiency, loaded with comfort, and ready to handle your toughest tasks. In short, they’re your best choice if you’re looking for a strong, modern and affordable all-purpose tractor. Power • Engine Type: 4 cylinder, 16 valve, high pressure common rail, air-to-air intercooled turbo diesel • Engine Make / Model: Fiat Powertrain Industrial / FPT NEF • Engine Displacement: 274 cu.in. (4.5 L) • Rated Engine Horsepower @ 2200 RPM: 119 • Rated PTO Horsepower: 102 • Emissions Certification: Tier 4B/Final • Fuel Tank Capacity: 57.5 gal (217.6 L) • DEF (AdBlue®) Tank Capacity: 7.9 gal (30 L) Electrical System • Alternator: 120 amps • Battery: 12 volt with 950 CCA Transmission • Base Transmission: 8x8 synchronized hydraulic shuttle with left hand shuttle • Optional Transmission: 8x8 synchronized mechanical shuttle with left hand shuttle • Premium Transmission: 16x8 dual power synchronized hydraulic shuttle with left hand shuttle • Creeper Option: 10:1 gear ratio Rear PTO & 3-Point Hitch • PTO RPM: 540/1000 • 3-Point Hitch: Category II with flex link ends • Base 3-Point Hitch ASAE Lift Capacity: 3,735 lbs (1,693 kg) • Option 3 3-Point Hitch ASAE Lift Capacity: 5,499 lbs (2,499 kg) • Option 2 3-Point Hitch ASAE Lift Capacity: 7,326 lbs (3,323 kg) Hydraulic System • System Type: Fixed displacement pumps (steering, implement, auxiliary) with combining/diverter valve • Hydraulic Implement Pump Flow: 13 gpm (49 Lpm) • Optional Auxiliary Hydraulic Pump Flow: 9 gpm (34 Lpm) • Rear Hydraulic Remote Valves: Deluxe closed center with flow control and quick connect couplers Axles • Front 4WD Adjustable Tread Width: 61.4–88.8 in (1,560–2,256 mm) • Rear Flange Axle Adjustable Tread Width: 64–80 in (1,620–2,028 mm) • Rear Bar Axle Adjustable Tread Width: 60–80 in (1,524–2,028 mm) Weight • Shipping Weight (4WD, Cab, Flange Axle): 11,200 lbs (5,080 kg) • Shipping Weight (4WD, Cab, Bar Axle): 12,192 lbs (5,530 kg) • Shipping Weight (4WD, ROPS, Flange Axle): 10,362 lbs (4,700 kg) • Shipping Weight (4WD, ROPS, Bar Axle): 11,002 lbs (4,990 kg) • Max Tractor Weight (G.V.W.), Cab, 4WD: 17,196 lbs (7,800 kg) Dimensions • Wheelbase 4WD (Std. Duty Class 3): 99.2 in (2,520 mm) • Wheelbase 2WD Heavy Duty (8 bolt hub): 95.8 in (2,432 mm) • Overall Length 4WD w/ Front Weights: 184.7 in (4,690 mm) • Height to Top of Cab: 110.2 in (2,800 mm) • Height to Top of Exhaust: 109.8 in (2,790 mm)
