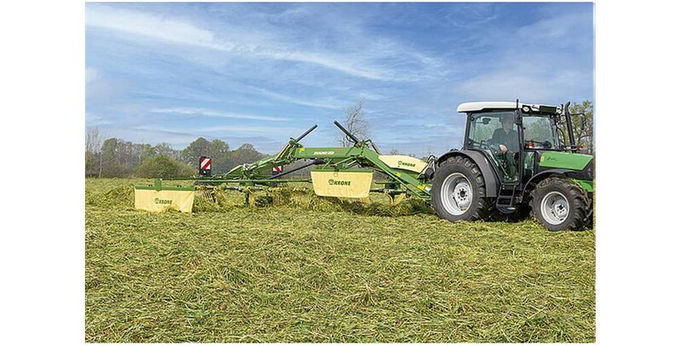

2025 Krone Swadro S 460 DB

The ­KRONE Swadro S and TS line-up of rotary rakes offers the largest choice of side delivery rakes in the market. Our programme comprises an unmatched number of models and variants – from the single-rotor rakes for non-contiguous fields all the way up to the Swadro TS 970, the world’s most unique three-rotor rake for maximum productivity and harvester capacities. Highlights • KRONE Swadro S/TS programme offers the largest range of centre delivery rotary rakes on the market • Model range spans from Swadro single-rotor rakes to the world’s largest side delivery rake, Swadro TS 970 • Working widths from 3.80 m to 9.70 m • Each model available with multiple options and operator comfort features KRONE Side Delivery Rotary Rakes • Largest choice of side delivery rotary rakes on the market • Unmatched range of models and variants • From single-rotor rakes for non-contiguous fields • Up to Swadro TS 970 – world’s most unique three-rotor rake • Designed for maximum productivity and harvester capacities Pull-Type and Cardanic Design • 3D contouring in any direction • Best possible 3D contouring for all tines • Clean forage with no losses Swadro Rotor Gearbox • Hermetically sealed and maintenance-free • Fuel-efficient gear ratio • Permanently fluid-greased DuraMax Cam Track • Maintenance-free design • Special Bainite hardness • Dry-running, steep cam track with small diameter Swadro Tine Arms • Full driveline protection • Neighbouring discs will not collide • Wear-free operation • Quick roll-pin replacement with lowest operating costs KRONE Lift Tine • Clean forage thanks to Lift Effect • High work rates without fragmentation • Improved forage quality • Reduced rake losses Bogies on KRONE Swadro Rakes • Gauge wheels on high-flotation tyres run very close to the tines • Largest wheelbase on the market • Adjustable rotor angle across direction of travel for optimum swaths • Loss-free raking performance • Optional front and rear caster-steer wheels protect the sward Extraordinary Simplicity • Mounted in the three-point linkage • Working widths from 3.80 m to 4.60 m • Unique caster-steered headstock with patented lower link couplers • Two attachment options available • Exceptional operator comfort and setup accuracy Swadro S Single-Rotor Rakes • Millimetre-precise rotor height adjustment with accurate scales • Convenient curtain fold-up mechanism • Foldable tine arms with wear-free, gapless joints Trailed Single-Rotor Rakes • Wide working width • Low power requirement • Parallel-linkage controlled drawbar • Tandem axle with 18" tyres as standard KRONE Easy-Line Drive Concept • Controlled material flow for perfect rakes • Boosted output for forage wagons, balers, and foragers • No roping for maximum harvester performance Twin-Rotor Side Delivery Models • Single and double swathing capability • Right-hand swath presentation • Variable working width • Hydraulic crop deflector adjustment • 13 tine arms per rotor Trailed Twin-Rotor Side Delivery Rakes • Flexible swathing: single, double, and twin swaths • Sequence-controlled rotors lift clear for easy headland turns • Optional individual rotor lift-out for clean corners • Extremely compact transport dimensions due to unique frame design Triple-Rotor Side Delivery Rake • 9.70 m (31'10") working width for maximum output • Electric working height control with height indicator • Hydraulic caster control for optimal road stability Specifications • Type: Single-rotor rakes • Attachment: Drawbar • Swath width (m): 0.80 – 1.80 • Working width (m): 4.60 • Rotor diameter (m): 3.60 • No. of tine arms per rotor: 13 • Input power (kW/hp): 22 / 31
